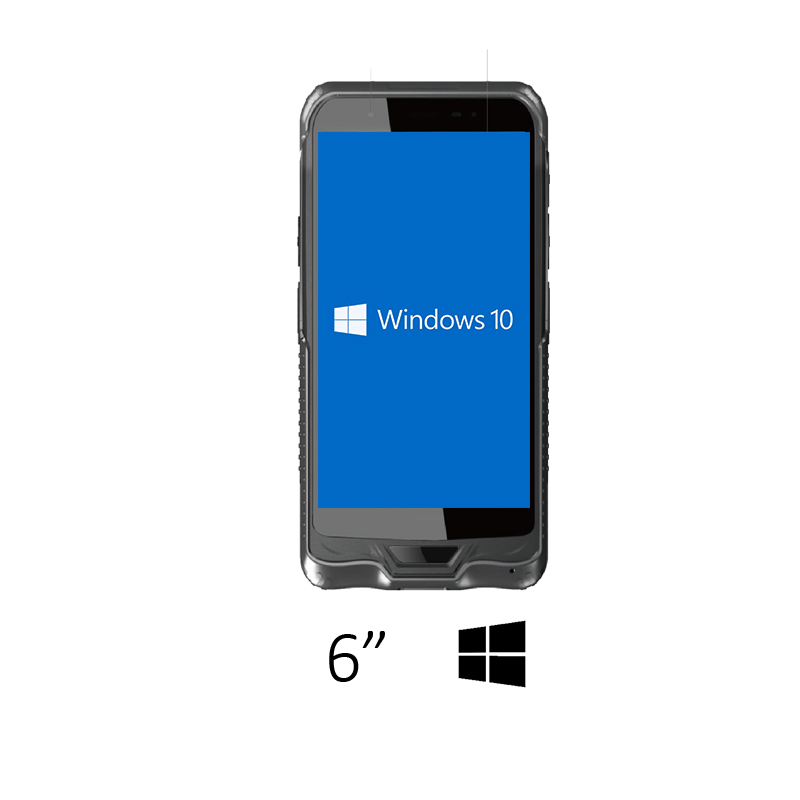

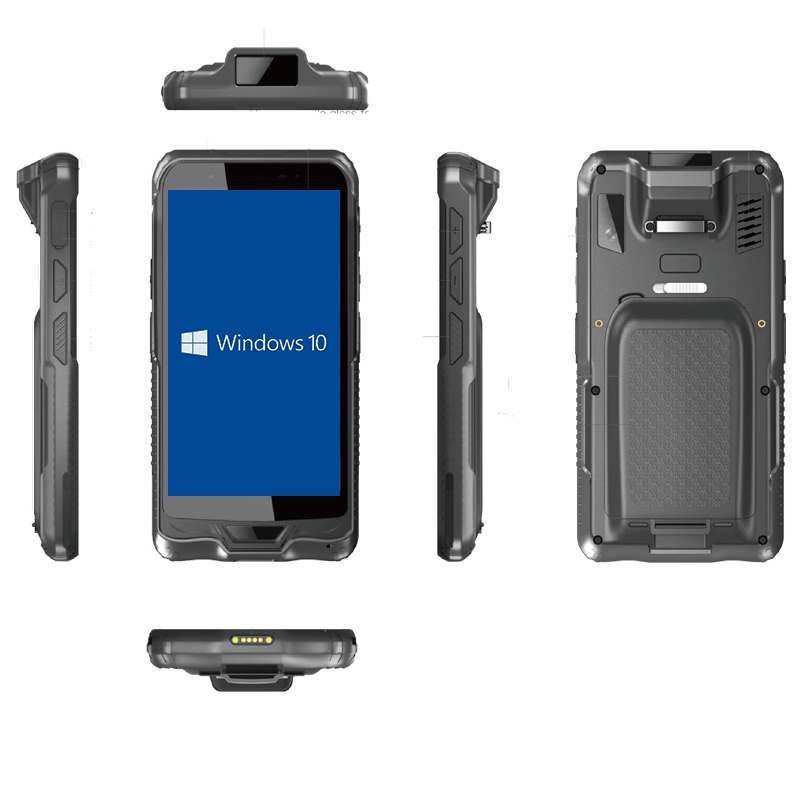

6″ Windows Scanner
Windows 10
6 inch IPS 720 * 1280, 430nits
5000mAh Lithium-ion Rechargeable & Replaceable Battery
Honeywell N3680 Barcode Scanner
Intel Atom® Cherrytrial x 5-Z8350 1.44GHz-1.92GHz
4+64GB
 |

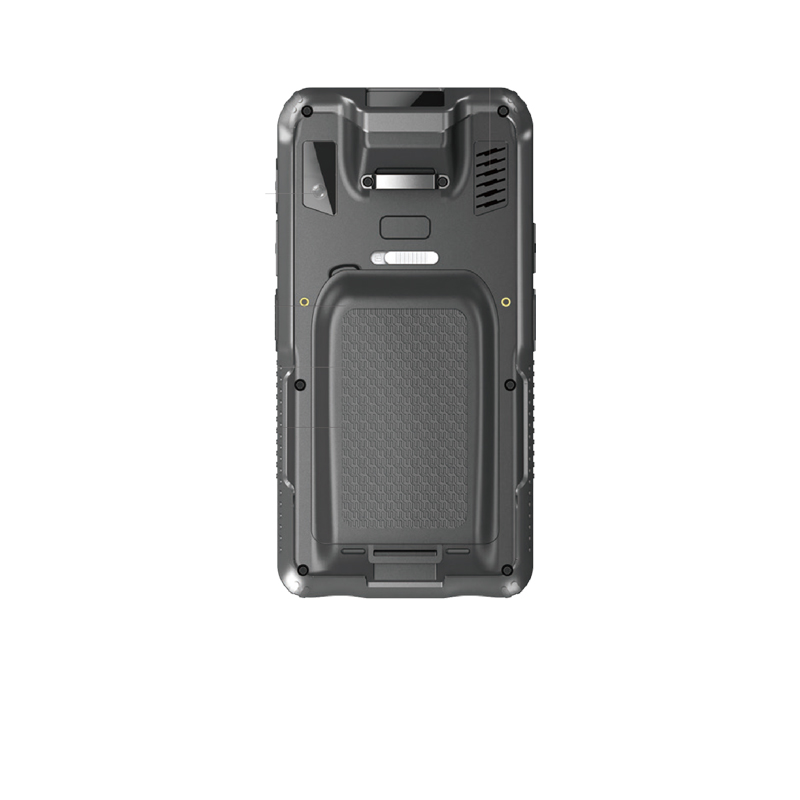

– 5000mAh large capacity battery.– Removable battery, can be replaced in seconds.– With Battery Safety Lock |
 |

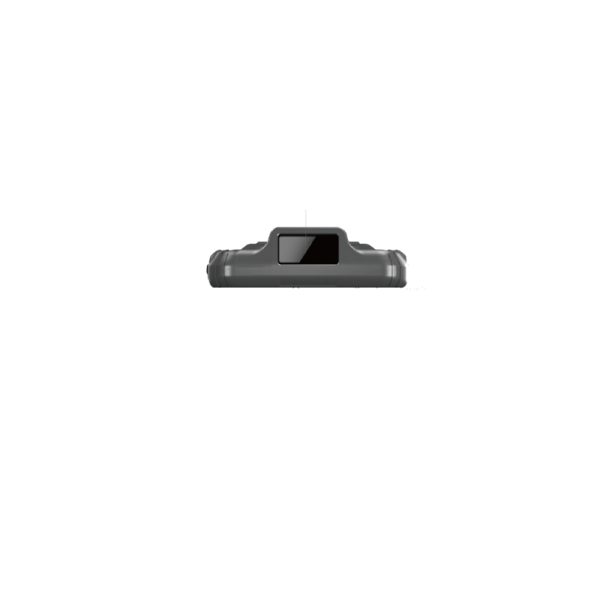

– Honeywell: N3680 |
|
– Front camera: 2.0MP– Rear camera: 5.0MP, autofocus with flash light-Built-in NFC |
|
|

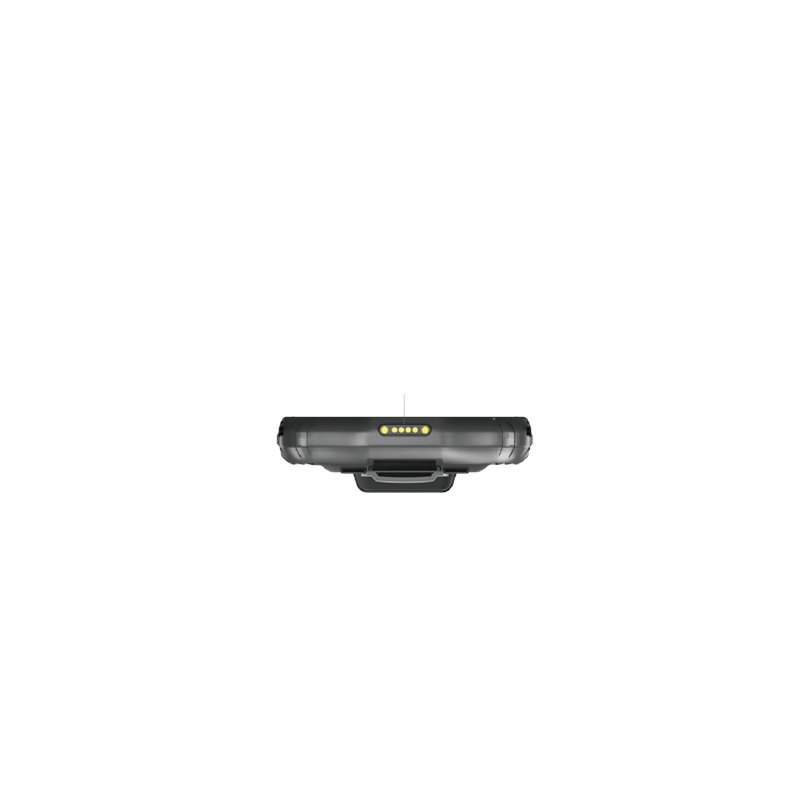

– 4* pins bottom Pogopin UART/USB/CAN/DCIN/GPIO |
 |

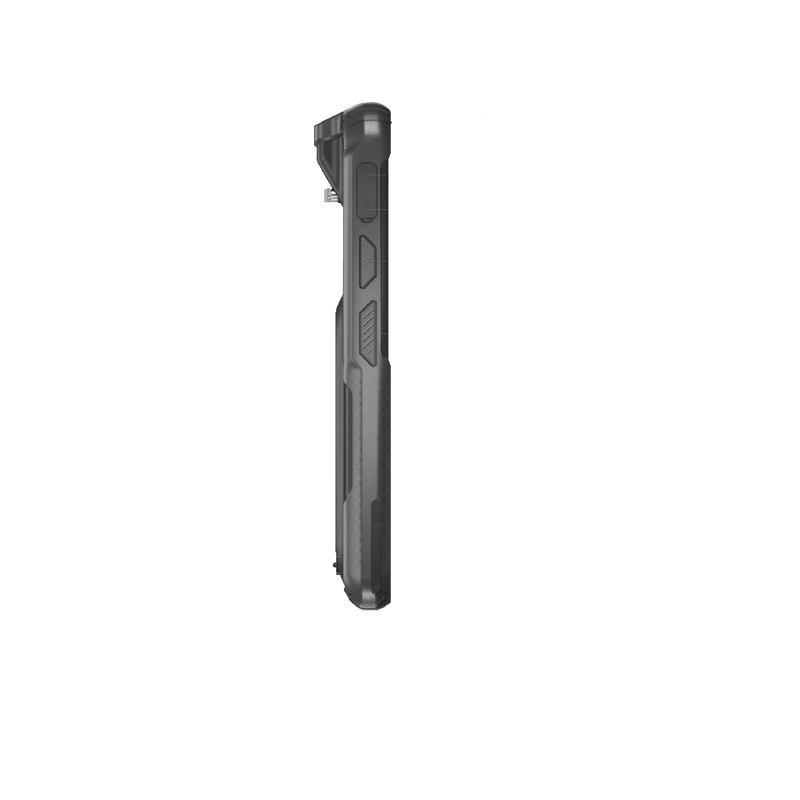

– Audio Port– 1 x Type C– Key of Power on/off– Key of Custom Button |
 |
– Key of Volume up/down– Key of Scanning |
Customers Who Bought This Item Also Bought
 |
 |
 |
 |
 |
 |
 |

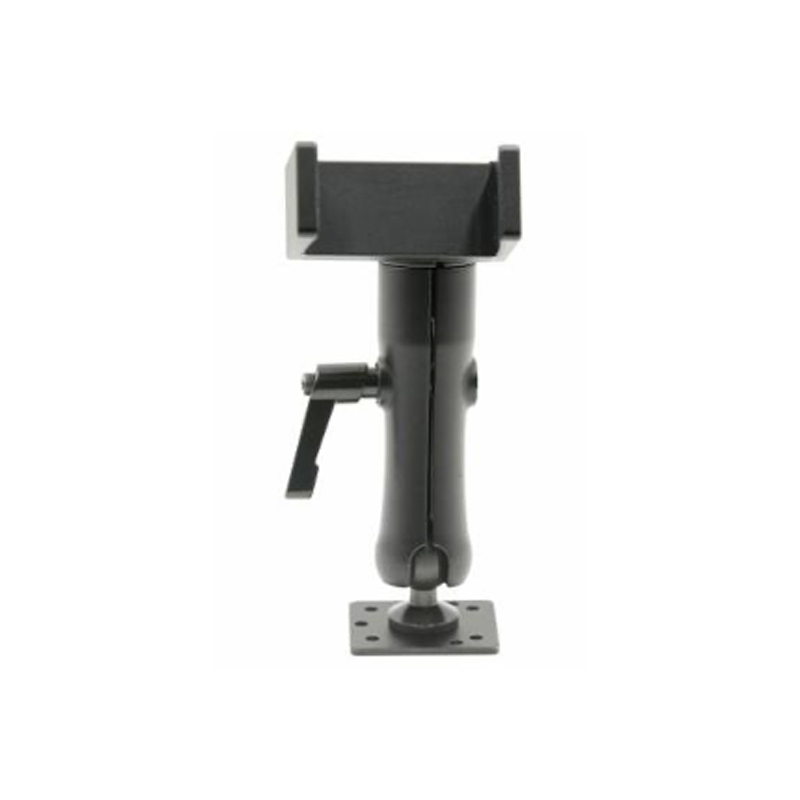

| Docking | Vehicle Mounting | Stylus | Battery Charger | AR Film |

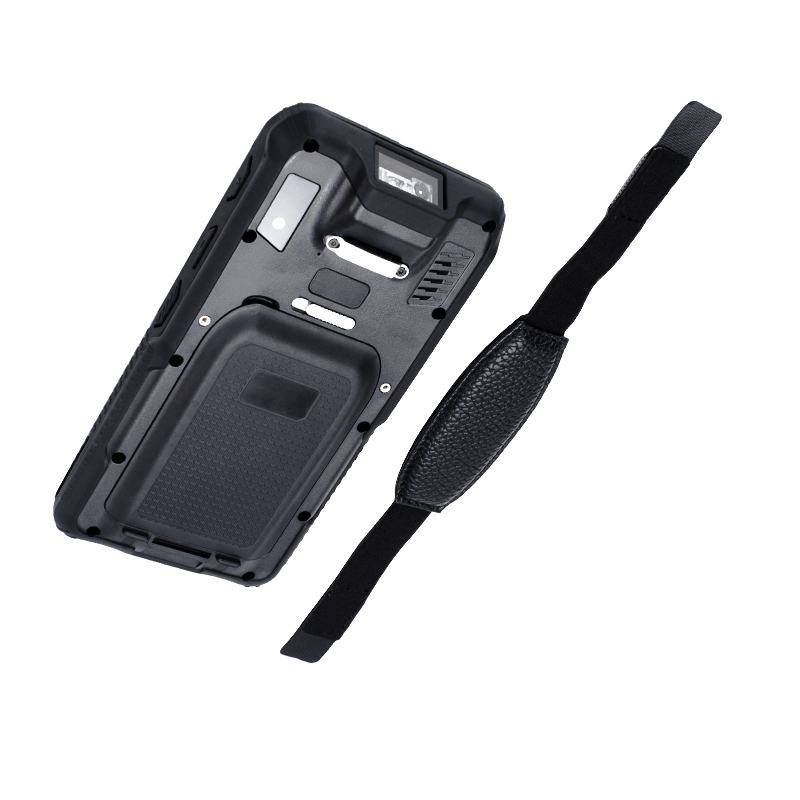

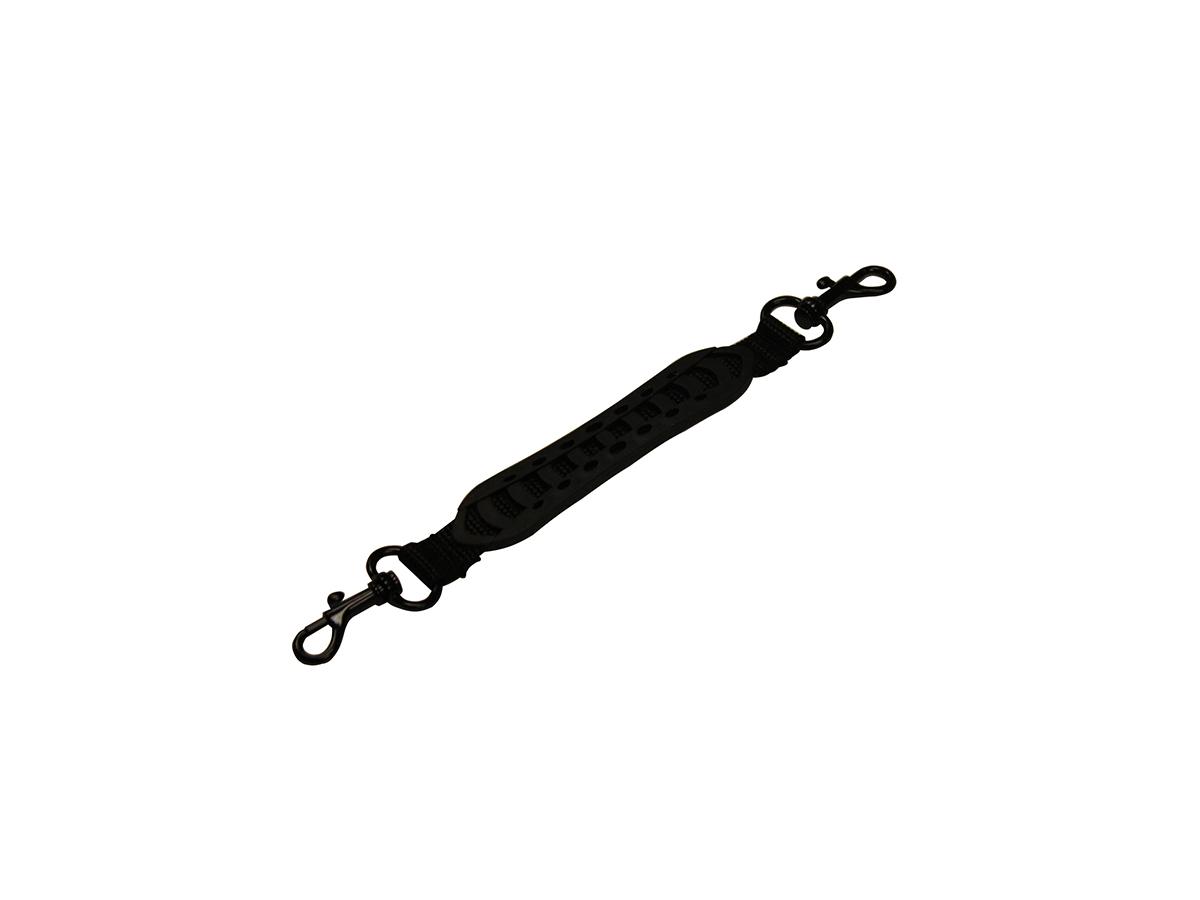

Handstrap
|
Handheld Case |
| Specification | |
| LCD | 5.99″ IPS FHD 1440*720 350 Nits |
| Touch Panel | 5 point G+F+F capacitive touch screen |
| Touch Pen | Stylus |
| Dimensions | 5.99“ 80 x 164 x 14m (3.2 x 6.5 x 0.6 inch) |
| Weight | 255g (9.0oz) |
| Drop testing | 1.2M (3.9 ft) Drop |
| Water proof | IP65 |
| Work Temp. | -10℃~50℃(14°F~122 °F) |
| Storage Temp. | -20℃~60℃(-4°F~140 °F) |
| Ingress Protection | MIL-STD-810H |
| CPU | ARM OCTA core 2.2GHz |
| OS | Android 12 GMS |
| RAM | 4GB |
| Flash | 64GB |
| Rear Camera | 13M OV13855 Autofocus with Flash Light |
| Front Camera | 5M GC5035 |
| Flash Light | Yes |
| WIFI | Bluetooth® 5.1 |
| Network | 2G/3G/4G LTE |
| GSM: 2/3/5/8 | |
| WCDMA: B1/B2/B5/B8 | |
| TDD-LTE: B38/B39/B40/B41 | |
| FDD-LTE: B1/B2/B3/B5/B7/B8/B20 | |
| 5G：N1+N3+N5+N28+N38+N41+N77+N78+N79 | |
| SIM Card | 1 * Nano SIM |
| SD Card | 1 * Micro SD Support max:128G |
| Bluetooth | Bluetooth® 5.1 |
| I/O | USB Type C support OTG, USB 2.0 |
| Battery | 3.8V/4500mAh Rechargeable and Replaceable Lithium-ion Battery |
| Fast Charge | AC100V ~ 240V |
| NFC | NFC Built-in, Frequency 13.56Mhz 0-3 |
| Speaker | Integrated Loudspeaker |
| MIC | Built-in Microphone |
| Audio Jack | Type C |
| Sensor | G Sensor, Fingerprint |
| GPS | GPS/GLONASS/Beidou/Galileo |
| KEY | Power/Volume +/- / scanning |
| Pogo Pin | 6 * Back Pins Pogo Pin USD2.0/DCIN/GPIO/UART |
| Certificate | UN38.3 MSDS IEC 62133 |
| Accessories | AR Film/HShoulder Strap/Bag/Protected Case/Stylus/Docking/Micro SD Card |
| Optional Additional Features | Vehicle Charging (By Optional Accessories) |
