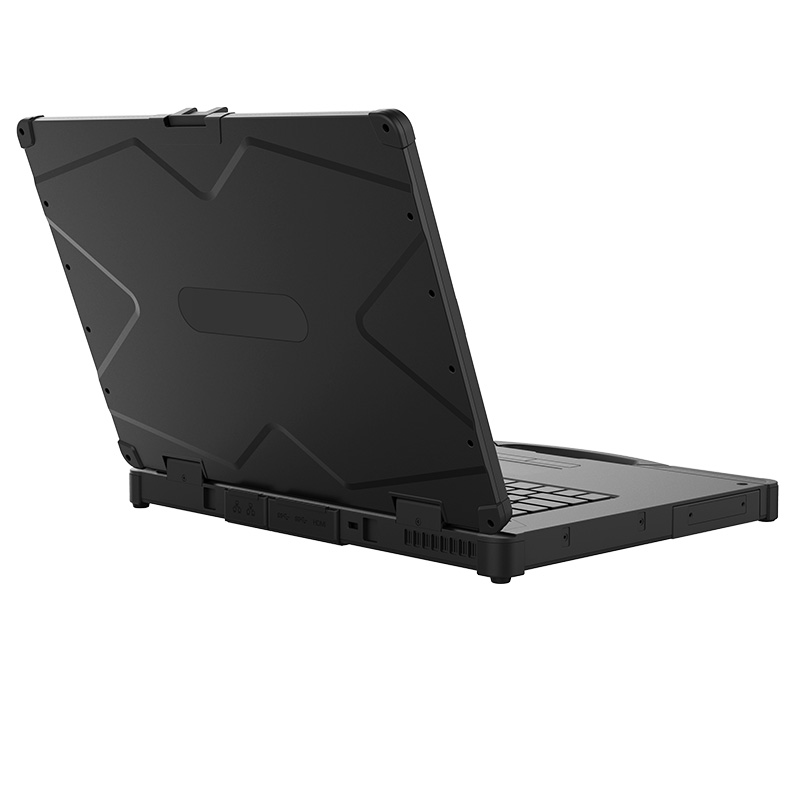

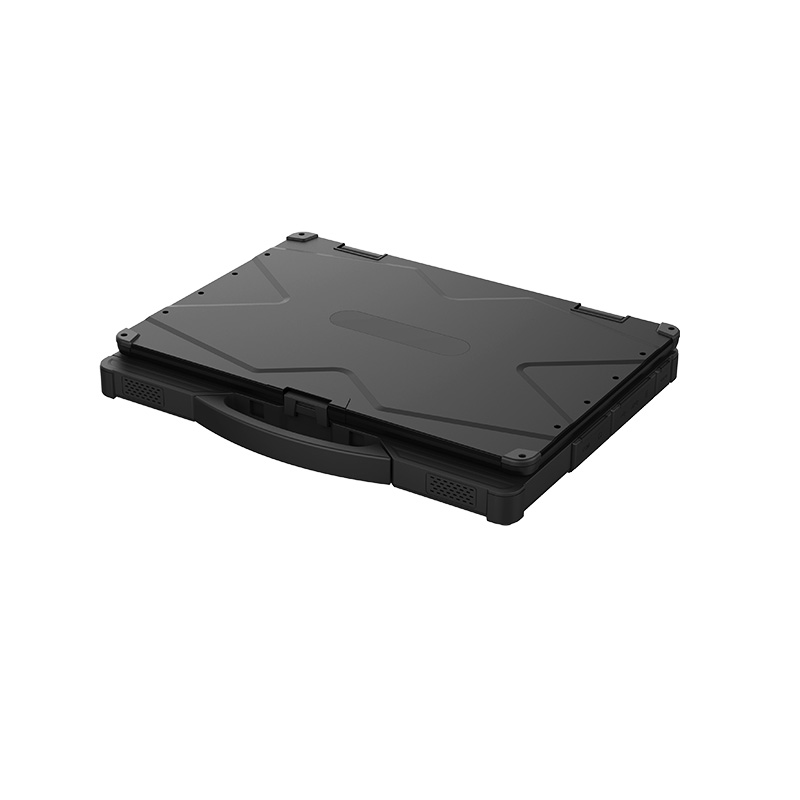

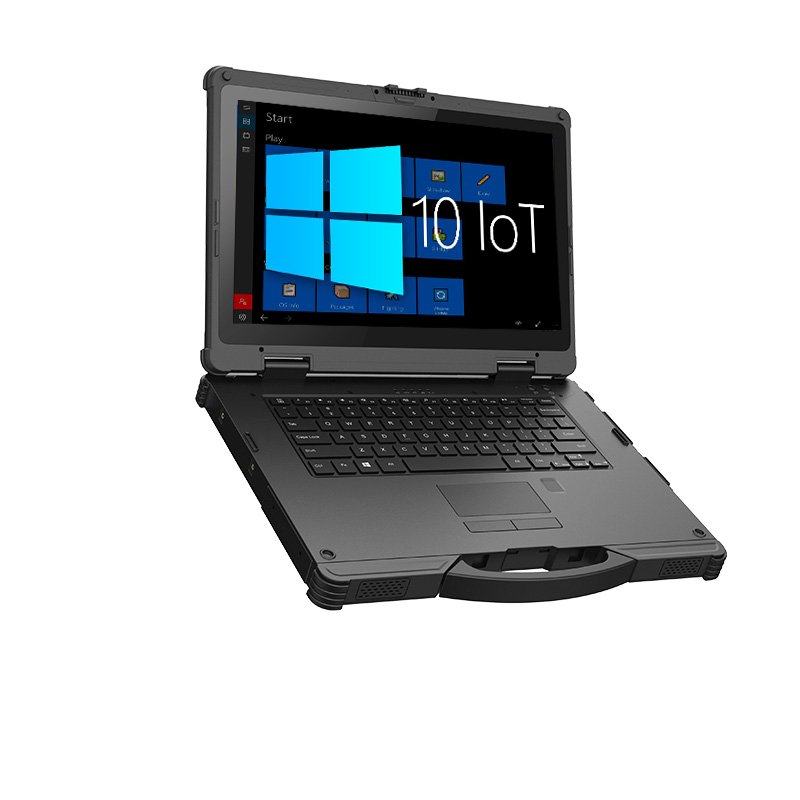

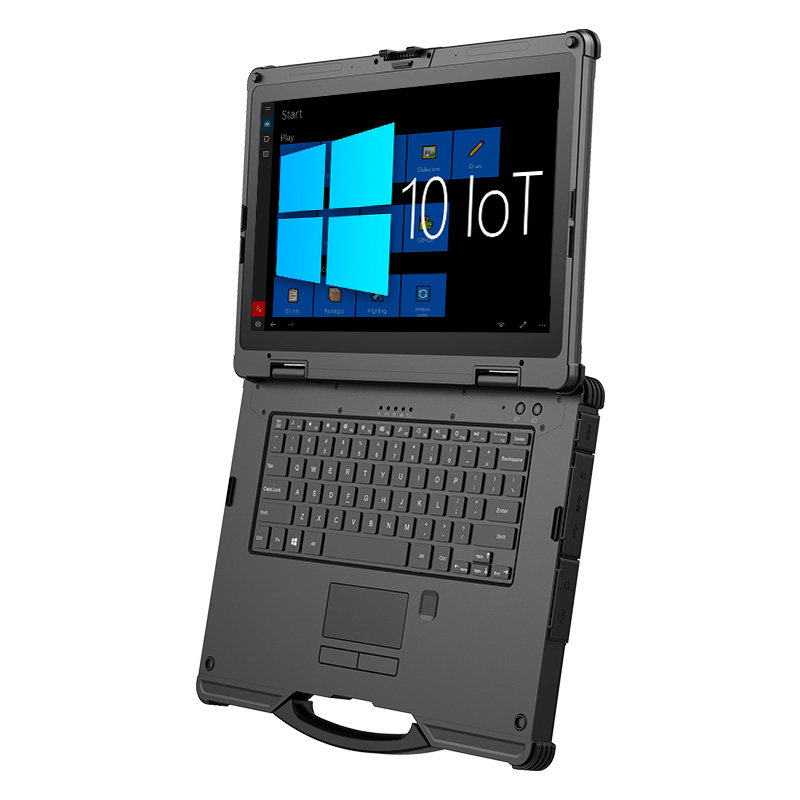

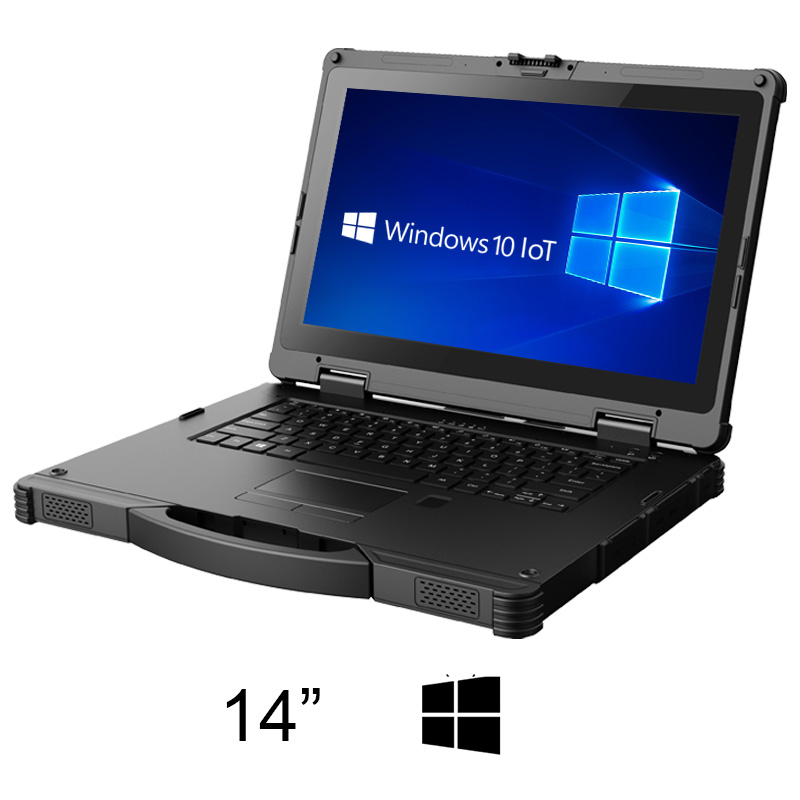

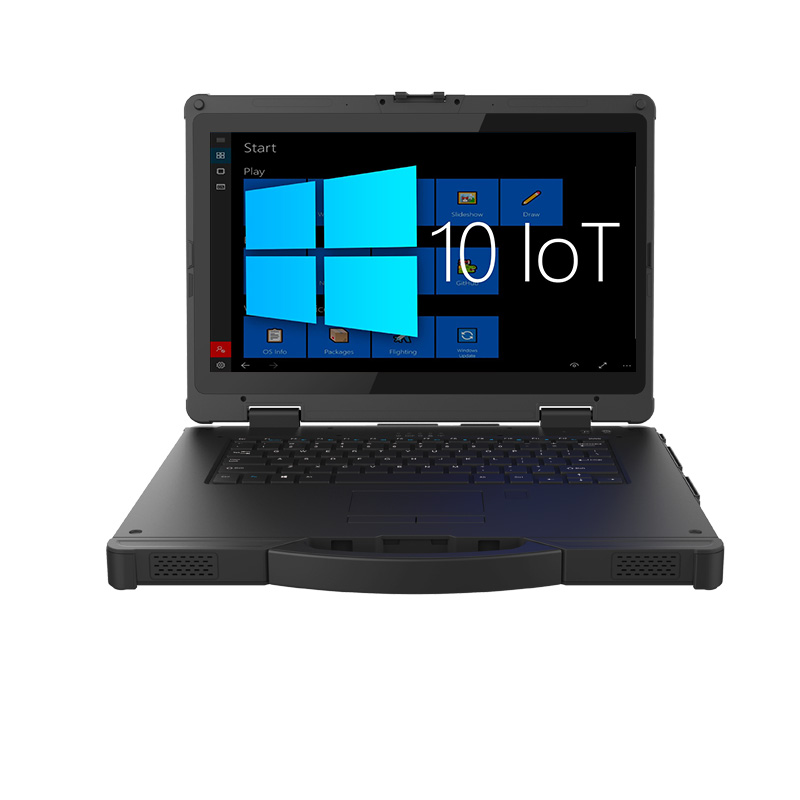

14″ Windows Rugged Laptop
OS: Windows 10 IoT
CPU:Intel® Celeron® Processor i5-1135G7 Tiger Lake
MEMORY: 8GB/ 256GB
DISPLAY:14″ IPS F HD, 1920 x 1080, 700 NITS- Sunlight Readable

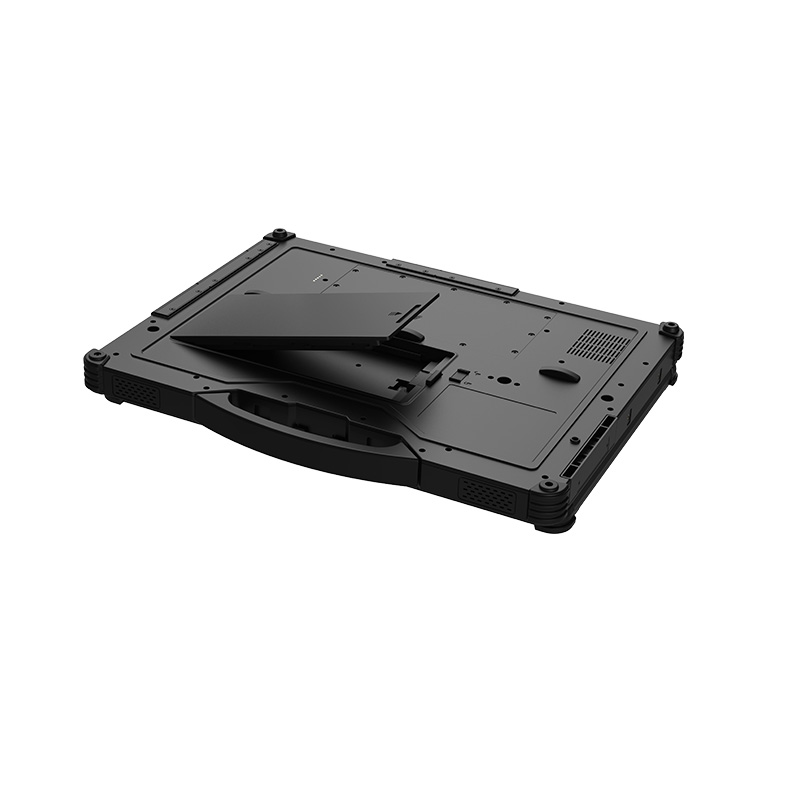

Battery:Built-in 7.4V/1750mAh +7.4V/6300mAh Hot-pluggable
Feature: Fingerprint/Double battery
GPS: Built-in u-blox NEO-7/GPS/Beidou/Glonass
 |
– 1750 mAH 7.4V battery built-in– 6300mAh Hot-swappable Removable Battery, |
 |
– 1 * USB2.0– 3 * USB3.0– 1 * HDMI Type A– 1 * RS232– 1 * RI45 |
|
– Fingerprint– Built-in NFC– Anti Theft Lock Hole– Heat dissipation air outlet |
 |
– 5*Pins Pogo Pin UART/USB/CAN/DCIN/GPIO |
Customers Who Bought This Item Also Bought
 |
 |
 |
 |

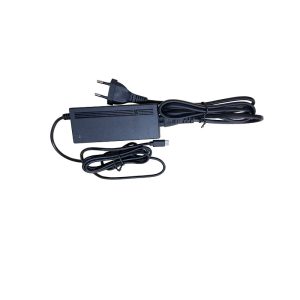

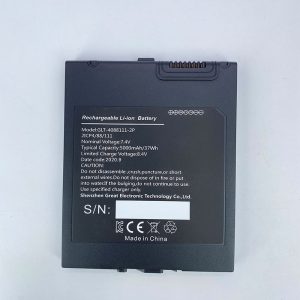

| Stylus | Adapter AC100-240V | 6300mAh Battery | Bag |
| Specification | |
| LCD | 14″ IPS FHD 1920*1080 700 Nits |
| Touch Panel | Capacitive, 10-Point Touchscreen |

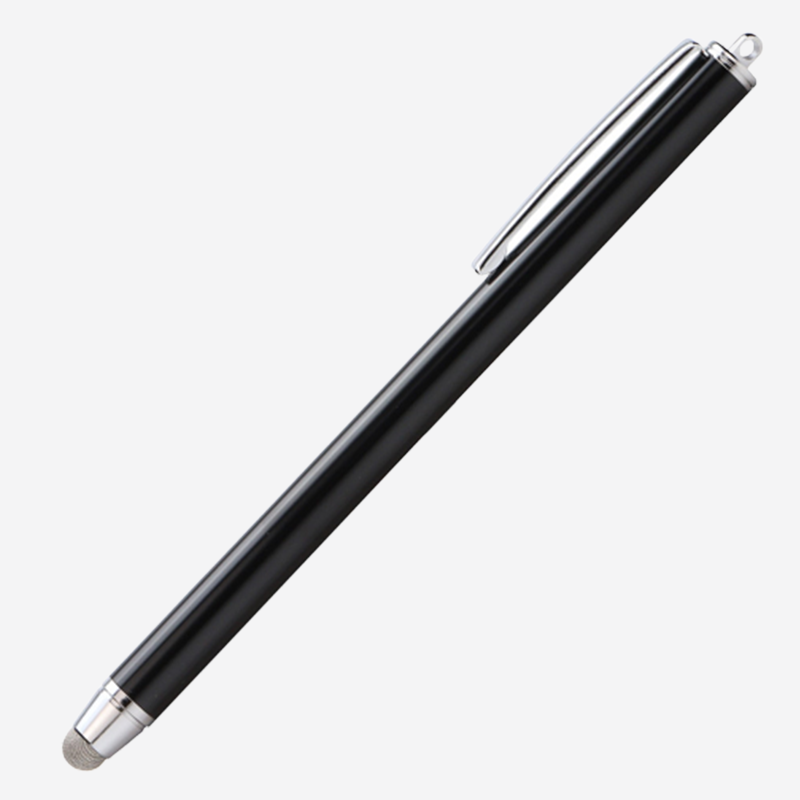

| Touch Pen | Stylus |

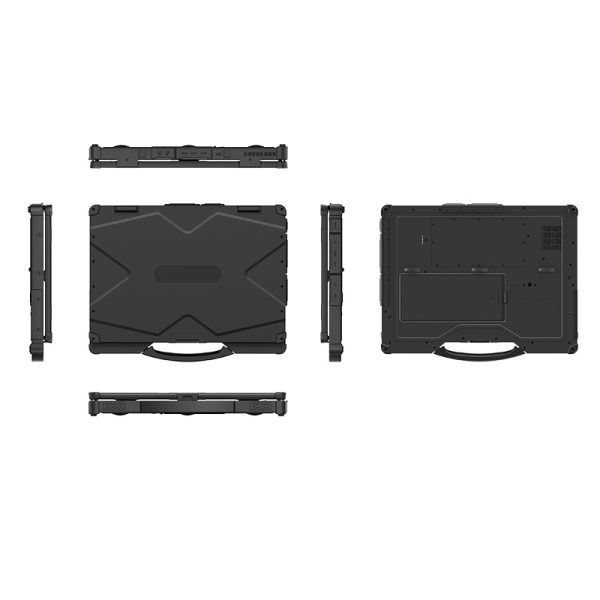

| Dimensions | 14″ 363 x 287 x 42mm (4 x 11 x 1.6inch) |
| Weight | 2850g (101oz) |
| Drop testing | 1.2M (3.9 ft) Drop |
| Water proof | IP65 |
| Work Temp. | -20℃~60℃(-4°F~140 °F) |
| Storage Temp. | -30℃~70℃(-22°F~158 °F) |
| Ingress Protection | MIL-STD-810G |
| CPU | Intel® CoreTM i5-1135G7 Tiger Lake |
| OS | Windows 10 IoT |
| RAM | 8GB |
| Flash | 256GB |
| Front | 2M |
| Flash Light | Yes |
| WIFI | Wi-Fi 6 802.11 a/b/d/e/g/h/i/k/N/r/u/v/w/ac/ax |
| Network | 2G/3G/4G (By Optional) |
| GSM: 900/1800 | |
| WCDMA: B1/B5/B8 | |
| FDD-LTE: B1/B3/B5/B7/B8/B20 | |
| TDD-LTE: B40 | |
| 5G (By Optional) | |
| 5G NR: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N38/N40/N41/N48*/ N66/N71/N77/N78/N79 | |
| LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 | |
| LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 | |
| LAA: B46（2 * 2 MIMO） | |
| WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | |
| SD | 1 * Micro SD Support max:128G |
| SIM | 1 * SIM Card |
| Bluetooth | Bluetooth® 5.1 (BLE) Class1 Transmited Distance: 10m |
| I/O | 3 * USB 3.0 |
| 1 * Type C | |
| 1 * HDMI Type A | |
| 1 *RS232 | |
| 1 * RJ45 | |
| 1 * Anti Theft Lock Hole | |
| 1 * Heat Dissipation Air Outlet | |
| 4 * PCIE Slot(By Optional) | |
| 1 * HDD (By Optional) | |
| Battery | Built-in 7.4V/1750mAh +7.4V/6300mAh Hot-pluggable Removable aNd Repplaceable |
| Adapter | Adapter AC 100V-240V Power Adapter |
| NFC | Support UHF / NFC(By Optional Built-in) |
| Speaker | Built-in 8Ω/0.8W Speaker |
| MIC | 2 * Internal Digital MIC |
| Audio Jack | ø3.5mm Earphone |
| Sensor | G Sensor, Gyro., E-Compass, Accelerometer, Light Sensor, Fingerprint |
| GPS | Built-in u-blox NEO-7 |
| GPS/GLONASS/Beidou | |
| KEY | Power / Reset/ P Key |
| Pogo Pin | 5* Pins Pogo Pin |
| Certificate | FCC , CE , RCM, RoHS |
| Accessories | Protected Case/Stylus/Metal Cradle/Vehicle Mounting Dock/Bag |
| Optional Additional Features | NFC Module(By Optional Built-in) |
| Optional Spec. | 16+1TB |
| Microsoft License |
